ISO9001 & RoHS Certificated Dyes Pigments Hammer Mill

Basic Info

Model NO.	ACM
Type	Ball Mill
Motor Type	AC Motor
Motor Power	18.5KW
Rotationl Speed	20-22r/min
Application	Chemistry
Materials	Antimony
Condition	New
Main Material	Carbon Steel or 304 Stainless Steel
Certificate	Ce
Spare Parts	Available
Bearing	FAG
OEM&ODM	Available
Knife Material	Imported From Euro
Transport Package	Wooden Pallet
Specification	ISO9001
Trademark	LEAP
Origin	China
HS Code	8479820090
Production Capacity	100 Set/Month

Product Description

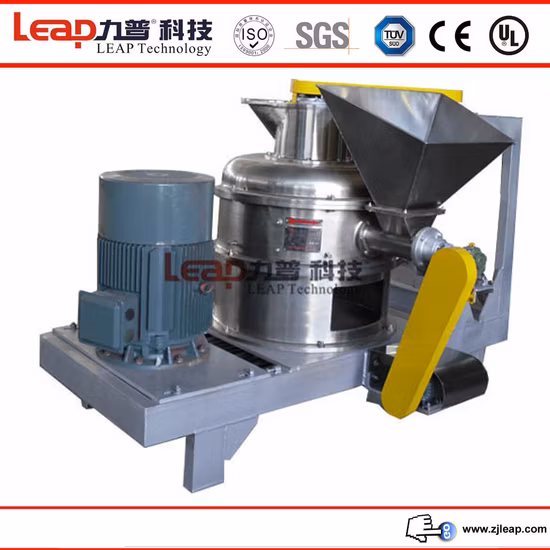

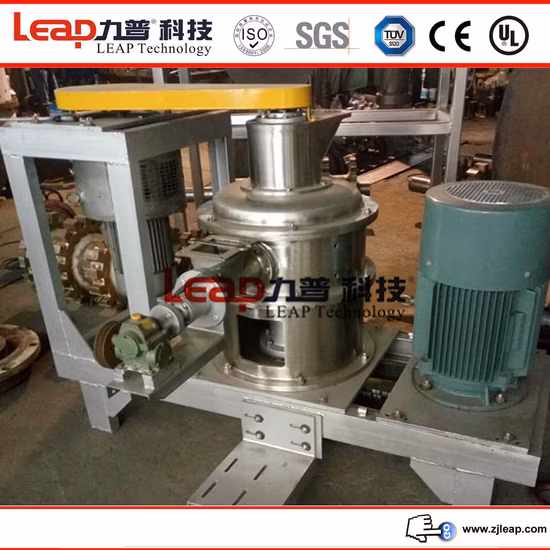

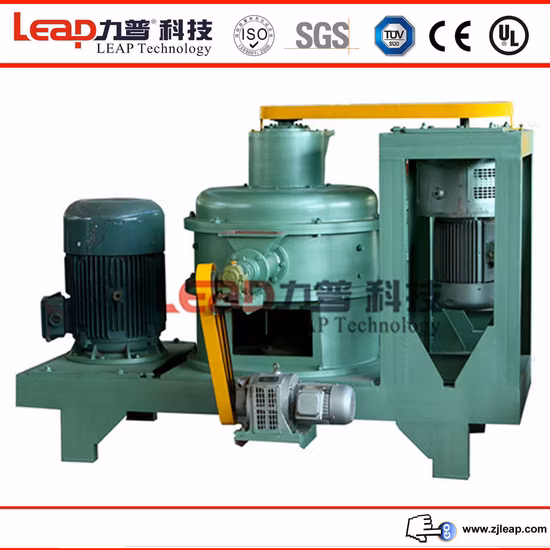

ISO9001 & RoHS certificated Dyes Pigments Hammer Mill

Feature
1)Low-noise
2)Environment-friendly
3)High capacity
4)Stainless steel main parts or Carbon Steel parts
5)Precipitator using a cartridge filter area, Filtration area of 96 square meter.
The current domestic crushing equipment, the high hardness, crushing the material difficulty exists, such as Short life for the wearing parts, not easy to crush high hardness, high humidity, sticky, low melting point, hard To discharge the material, and flammable. The main advantages of various types of integrated mill in the ACM Series, based on the repeated practice made. The correct fineness is based on the material.

Working Principle

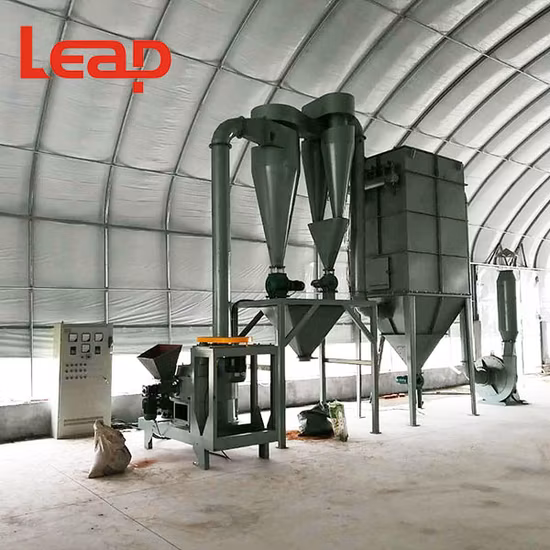

Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be
impacted by highspeed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into fine powder. The milled powder
would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel, coarse
powder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into
the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to themilling chamber to be milled again.

Main purpose
This applies to the following seven non-metallic mineral hardness, diatomite, fluorspar, Fluorite, mica, and Low humidity, high melting point, viscosity of sulfur Juan, pesticides, and other ultra-fine grinding of Materials to solve the major problem which current domestic crushing industry can not solve. Fineness Can reach at 5 to 10 microns. Especially for cocoa coarse material,cocoa shell,coconut cake,rice, sugar,corn, fibre material,medicinal materials...

Technical Parameter

MODEL		ACM-5	ACM-15		ACM-30		ACM-50	ACM-60		ACM-100	ACM-120
Parameter\
Matched Powder(kw)	Grinding Plate	4	11		22		30	45		90	110
	Classifying wheel	0.75			4		5.5	7.5		11	15
	Feeder	0.35	0.37		0.55					1.1
Air Flow(m3/h)		250-500	1200-2000		2200-3600		3500-5500	4000-7500		7500-15000	9000-18000
Rotation Speed (r/min)	Grinding plate	9000	5600		4600		4200	2900		2100	1800
	Classifying wheel	900-3500	750-2800		700-2800		650-2600	600-2400		500-2000	400-1800
Pulverizatin Fineness(μm)		5-300
Dimension(l×w×h)mm		690×690×770		1300×650×750	1640×960×1030	2000×1200×1300			2000×1200×1300	2400×1500×1600		2400×2200×2600
N.W(kg)		300		600	1000	1600			2000	3000		3500



FAQ
1. What material you want to grind, is it dry, what is the size of feed material ?
2. What capacity you expect ? (kg/h)
3. What mesh or mm or micron(size) of the powder you want?
4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)

We know that a good and satisfying powder grinding mill manufacturer and supplier should not only provide
high quality products, but also complete customer services.
we provide the following services:

Technical support
Upon receiving the deposit, we will offer the following technical services:
1. Design for your production line flow and equipment layout, free of charge;
2. Provide foundation drawings of customer-ordered grinding mills and drawings of related parts, etc;
3. Technical parameters of peripheral equipment will be supplied;
4. Free technical suggestions on adjusting of equipment layout and application.
5. Equipment upgrading (customers need to pay the cost);

Quality assurance
1. Strictly conforming to ISO9001-2000 quality management system;
2. Strict control from purchasing inspection, process inspection to final proofing;
3. Established several QC departments to execute quality control regulations;
4. Detailed quality control examples:
(1) Complete files for quality control and quality feedback;
(2) Strict inspection for the components of our grinding mills, to assure products free of damage and avoid
rust-eaten and paint peeling off later on.
(3) Only qualified components will be assembled and total equipment must be inspected completely before
sale.

After sale service
1. We will send our technician to the site for guiding equipment installation and commissioning.
2. During the installation and commissioning, we offer operator training service.
3. The quality assurance date is one year after commissioning. And after that, we will collect the cost if
provide repairing for your equipment.
4. Maintenance for equipment failure caused by improper handling (appropriate cost will be collected).
5. We offer the components with favorable price and perdurable maintenance.
6. If equipment repairing is needed after quality assurance date is expired, we will collect maintenance cost.

Welcome to visit our factory !
