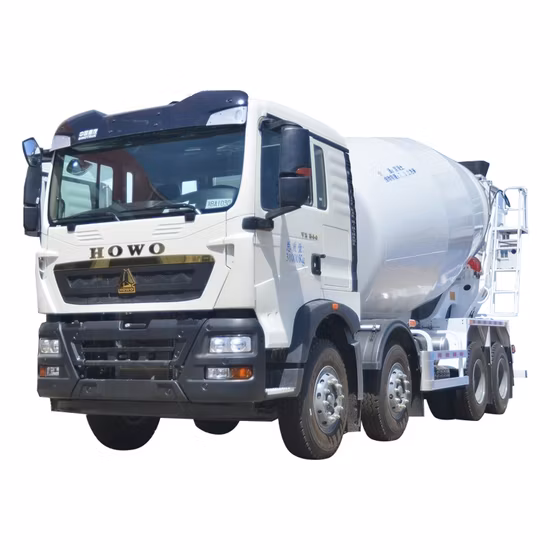

Sino Truck HOWO/ Sitrack Chassis Concrete Truck Mixer Vehical with High Quality

Sino Truck HOWO/ Sitrack Chassis Concrete Truck Mixer Vehical with High Quality

Product introduction: Heavy Duty Truck Haohan 12 Square Lightweight Cement Mixing Truck: Chassis configuration of the He
Basic Info
Model NO. MB35
Condition New
Loading Bucket Capacity 0.8m3
Model Fawde 6110
Drum Rotating Angle 220degree
Mixing Capacity 5.5m3
Transport Package Standard Package
Specification 1/2/3/3.5/4m3
Trademark MACPEX
Origin China
HS Code 8474310000
Production Capacity 200
Product Description

Product introduction:
Heavy Duty Truck Haohan 12 Square Lightweight Cement Mixing Truck: Chassis configuration of the Heavy Duty Truck Haohan 12 Square Mixing Truck: German Mann 340 horsepower national five engine, 10 speed gearbox, 5.573 speed ratio, 10 ton rear axle, and main beam: 850 × 300 (8+5), 11R20 steel wire tire, cab hydraulic suspension, airbag seat, engineering bumper, electric air conditioning, electric window shaker, domestic clutch, domestic steering gear, spare tire rack, 165Ah ordinary battery, with ABS, engine full power take-off, rocker arm remote throttle control, Tianxing Jianzhi Ya version BD car terminal, front lower protection. Upper installation: 12 square lightweight mixer truck configuration: reducer: PMP/TOP, pump and motor: Eaton, 18L radiator, cylinder material 520JJ, cylinder thickness 4mm, head thickness 6mm, additional hopper, paint baking
Parameters of heavy-duty Haohan lightweight 12 square meter cement mixer truck
Parameter:

EngineBrand SINOTRUKGross Vehicle Weight25000kg
WD615.87Kerb Weight12300kg
Maximum Output290HPTyres12.00-20
Rated engine power
(KW/r/min)
213/2200CabHOWO70
Air-condition
TransmissionHW15710Maximum Speed75 km/h
Front AxleHF9Geometric volume M314.5
Max.loading:9000kgAgitating capacity9
Rear AxleHC16 Ratio:5.73Discharging remain
ration
<0.2%
Max.loading:16000kg
Overall Dimension(mm)9003*2496*3886

Vehicle Name: Parameters of Heavy Duty Truck Haohan Lightweight 12 Square Mixing Truck
Engine: German MAN 340 horsepower - National V
Boundary dimension: 1025025503995
Total mass: 31000 (Kg)
Curb weight: 145000 (Kg)
Axle load: 6500/6500/18000
Number of axles: 3 (three axles) (6 × 4)
Transmission: Fast 9-speed
Number of tires: 10+1
Front track width: 19861940
Chassis emission standard: National V
Chinese brand: Heavy Duty Truck Haohan 12 Square Mixing Truck Parameters
Displacement (ml): 11596
Mixing volume: 12 cubic meters (12 cubic meter mixer truck)
Number of spring plates: 13/14/12, left 14 right 13/left 14 right 13/12
Rated mass: 114000 (Kg)
Wheelbase: 1800+3000+1300
Vehicle speed: 83 (km/h)
Front and rear axles: 5 tons front axle, 10 tons double rear axle
Tire specification: 11.00R-20 original factory steel wire tire
Rear track width: 1860/1860
