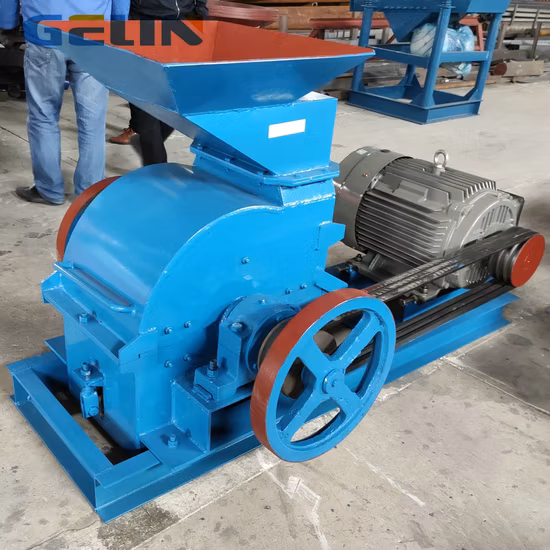

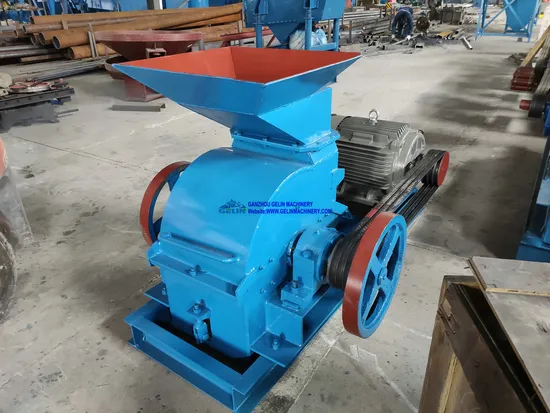

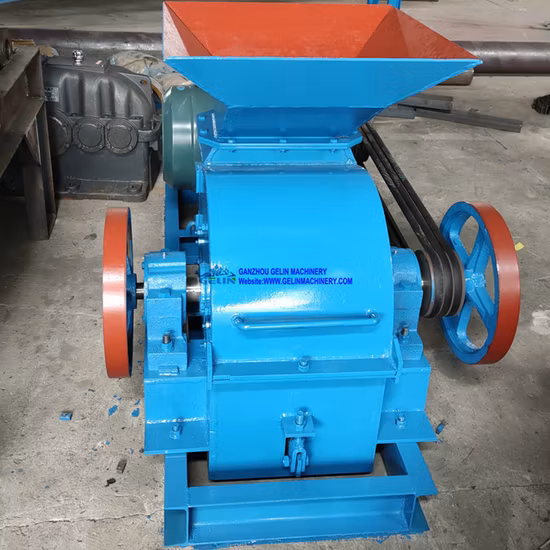

Fine Crushing Machine Rock Gold Ore Grinding Hammer Mill

Basic Info

Model NO.	Hammer Mill
Application	Stone, Rock, Big Mineral
Outlet Size	0.1-12mm
Inlet Size	50mm
Condition	New
Warranty	2 Years
After-sales Service	Engineer Guidance/Video Guidance
Spec.	300*500
Installation	Under Our Engineer′s Guide
Power(Kw)	15
Transport Package	Nude / Container
Specification	CE
Trademark	Gelin
Origin	Ganzhou, Jiangxi, China
Production Capacity	1200sets Per Month

Packaging & Delivery

Package size per unit product 80.00cm * 50.00cm * 60.00cm Gross weight per unit product 130.000kg

Product Description

Fine Crushing Machine Rock Gold Ore Grinding Hammer Mill
1.Description

Hammer mill (Hitting granulating machine) is lately developmental new kind of crusher equipment. This kind of machine is designed for small-scale gold processing plant, especially adapt to free gold recovery. Assembled with Centrifugal Concentrator or jig can establish a processing plant, and it is very effective to recovery free gold.

Features
1. Big feeding size and very small output size to 0.1mm (can be adjusted).
2. Both dry and wet crushing.
3. Especially suitable for crushing coal, gypsum and tile.
4. Adjustable end products sizes, simple crushing process.
5. High reduction ratio and crushing efficiency.

With diesel engine With electric motor

2.Working Principle

The main motor drives the spindle to rotate at a high speed through the triangle belt, and the hammer pin is uniformly connected to the spindle. With the high-speed rotation of the spindle, the bulk material enters the crusher through the grate cooler and collides with the high-speed rotating hammerhead. When the crushed material is less than the screen gap, it is discharged from the discharge outlet, and the material larger than the screen gap continues to be broken, so as to complete the whole crushing process of the material.

3.Application

4.Technical Data

Model	Motor	Capacity	Input size	Output size	Quantity
	(kw)	(t/h)	(mm)	(mm)	of hammer
200*500	7.5	0.5-2	<50	0.1-3	4
300*500	11	1-4	<50	0.1-5	6
400*600	15	2-6	<50	0.1-12	8

5.Packing & Loading

6.About Us

Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.

Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.

Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.

Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.

7.GELIN Services

--- PRE-SALE SERVICE ---
1.Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients' demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

8.Certificate


9.Customer Visiting

10.FAQQ: How big is your factory?
A: In tolal 6 work shops,17,000 m²,office 2500 m²,110 workers.

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.A:1). What type is the mining? Is it rock stone? or it is sand?2). If rock stone,What is the general particle size(mm) of the raw ore?3). What is the handling capacity(tons per hour) you plan to work with?4).What is the elements of the raw ore? How much percent % of each minerals?

Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Welcome you visit our factory in your free time!
